Stainless Steel Wire manufacturer in India
SS 304 Stainless Steel Wire mesh and SS 316 Filler wire supplier
The “Ultra finish” process is designed to produce Stainless Steel wire with the tightest dimensional tolerances and the best surface finish possible by drawing through custom made diamond dies. 316 Stainless Steel Ultra Finish wires receive special processing in order to obtain the required surface finish, roundness, and size tolerance. These free machining wires (304 Stainless Steel escomatic wires) with smooth surface finishes and tight tolerances as well as specialised and complex profiled sections used in the automotive industry.
Our wire drawing capabilities include the ability to produce 316 Wires & 304 Stainless Steel Wire mesh between 10 microns and 1 mm in diameter using precision drawing dies. Stainless Steel Ribbon wire can be produced in thicknesses between 0.0002″ and 0.050″, and in widths between 0.002″ and 0.100″. SS 316 custom wire & Stainless Steel Wires can be drawn in any quantity and packaged on spools or cut to length, depending on the application.
SS 304 spring wire suppliers, SS welding wire exporter in India, SS Coil Wire, 304 SS Electrode Wire, 316 SS tig wire manufacturer in India

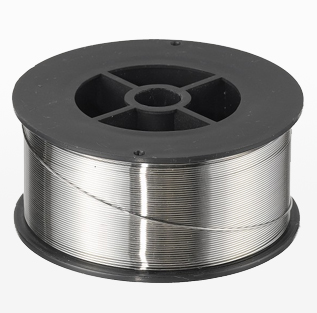

Stainless Steel Wire
Stainless Steel Welding Wire

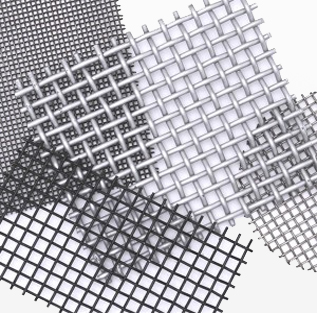

Stainless Steel Wire Mesh
We are a leading Stainless steel wire manufacturers in India supply Shaped SS wire, flat wire, flat spring wire, Wire mesh, 316 welding wire, MIG / TIG and SUB- ARC wires in Japan & Europe. Call us for amazing deals on Stainless Steel Fine Wire, 316 tig wire, spring wire & SS 316 mig wire. View price list of Stainless Steel wires. SS wire mesh/ cloth is produced in plain weave. The 316 wire mesh fabric is manufactured by weaving machines as mesh rolls, after 13 whole weaving process, the mesh surface flatness would be better. Stainless Steel wire cloth is most commonly used in fuel cell technology flied. Stainless Steel Flat Wire – Ribbon / Foil / Tape range available from 0.2mm (0.008″) to 20mm (0.787″).
Nirmaan Steel is specialist in Stainless Steel Profile / Shape Wire, Wire Rope, and Cable assemblies. We maintain stock of 316 Wire, Stainless Steel Coil Wire in various size range & diameter manufactured in accordance to BSEN, ASTM & NACE specifications. As a largest stockist of Welding Electrode in India we maintain stock of High quality Round and Profiled wires, 316 Welding Electrode and round wire anchors for any emergencies of pipe line leak. Our Dealers & Distributors in India arrange complete range of annealed, full hard, spring temper, cold heading Stainless Steel Bright Wire in shortest time as well at best price, because we maintain Stainless Steel Filler Wire in stock for sale in spools or straight lengths, so it saves time & cost to procure any size range in Stainless Steel Spring wire from any other vendor or manufacturer of SS profiled wires in India.
Our latest Price list of Stainless Steel Ultra Fine Wire size wise will match the price list provided by our other sales locations in India, for your reference you can ask Stainless Steel Knitted wire mesh price list by mail to nirmaansteel@gmail.com. So we can provide within 4 hours along with the actual photographs of 316 Electrode, Stainless Steel Wire Bobbin material. Our price of Stainless Steel MIG & TIG welding wire, presicion wounded on spools is 2% cheaper in Gujarat compare to Maharashtra because we have our stockyard in Ahmedabad, Gujarat. Buy directly from stainless steel wire mesh manufacturers in India for low cost & quick delivery.
Table of contents
- Stainless Steel Wire Specification
- SS Wire
- Stainless Steel Wire Mesh
- SS Wire Price
- Differences Between Stainless Steel 304 and 316
Looking to buy Nickel 0.025mm? Nickel 0.025mm?
Stainless Steel Wire Specification
SS Wire Manufacturing Sizes from 0.0025″ (0.0635 mm) up to .032″ (8.12mm)
Fine wire is manufactured to specifications including:
- ASTM A313 – spring certification
- ASTM A478 – weaving and knitting certification
- ASTM A492 – rope certification
Stainless Steel wires Offered in a wide range of packages including:
- Spool
- Reel
- Coil
- Bobbin
- Carrier
- Custom packaging provided from as low as 1 lb to 200 lb tapered plastics
Shaped, Flat, Square, Round, Fine Wire, Plated and Un-plated Wire
AMS 5514, ASTM A240, QQ-S-765
| Specifications | ASTM A580 ASME SA580 / ASTM A313 ASME SA213, AMS 5514 |
| Stainless Steel Wire Group |
|
| SS Wire Grades | 304, 304L, 316, 316L, 17-4PH |
| Stainless Steel Wire Dimensions | ANSI/AWCI – 01-1992 and ASTM E 2016-11 and RRW 360 |
| SS Wire Length | Cut Lengths: 0.125″ to 72″ No Limit on Spooled Lengths |
| 304 SS Wire Diameter | 0.0004″ to 0.040″ 10 microns to 1.0 mm Other Sizes on Request |
| Wire Density | 8.89 g/cm3 |
| Ultimate Strength (> MPa) | 580-750 |
| Wire Resistance (µΩ.m) | max standard |
| Wire Elongation (>%) | 28-30 |
| Surface | Polished bright, Smooth, Bare, Enamel, PTFE, Ceramic, Plated |
| Tempers | Tempers range from dead soft annealed to ultra spring temper |
| welded wire mesh | Roll Width: 24inch, 36inch, 1Metre, 48inch, 72inch, or 84inch Roll Length: 100feet or 150feet |
| wire mesh weaving methods | plain weave, twill weave, dutch weave |
| 304 / 316 Wire Technique | Cold Rolled, Hot rolled |
| 304 / 316 Wire Condition | M, Y, 1/2Hard |
| Offered in a wide range of packages including |
|
| Wire available in form of | Filler Wire, Flat Wire, Coil Wire, Electrode Wire, Welding Wire, Wire mesh, Knitted wire mesh, fiber mesh, mig wire, tig wire, spring wire, stranded and swized wire |
| Test Certificates |
|
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0165, NACE MR0175
Stainless Steel Wire Types
10 gauge welded Wires mesh
Stainless Steel Welded Wires mesh
Stainless Steel Knitted Wires mesh
Stainless Steel Filler Wires

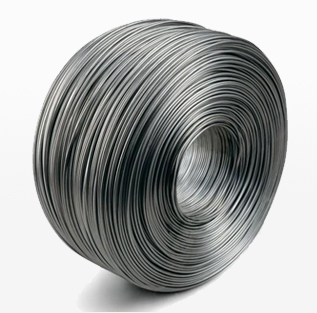

SS Coil Wires
Stainless Steel Electrode Wires
SS Welding Wires
SS Wires mesh
Stainless Steel Spool Wires
Stainless Steel Ultra Fine Wires
Stainless Steel Spring Wires
Stainless Steel Tying Wires
Stainless Steel Woven Wires mesh
Stainless Steel Wires cloth
0.25 mm Wires
Stainless Steel Wires bobbins
Stainless Steel Wire Mesh
SS 304/ 316 Stranded Weave, SS wire mesh manufacturer in India
4 Mesh .047" Woven Wire Cloth
6 Mesh .035" Woven Wire Cloth
6 Mesh .063" Woven Wire Cloth
8 Mesh .028" Woven Wire Cloth
8 Mesh .035" Woven Wire Cloth
10 Mesh .025" Woven Wire Cloth
10 Mesh .035" Woven Wire Cloth
12 Mesh .028" Woven Wire Cloth
Stainless Steel Wire Mesh composition & technical information
Stainless Steel Bright Wire Applications:
- Offshore rigs and onshore petrochemical plants and oil refineries
- Process plant for pharmaceuticals, surfactants, chemicals and additives.
- Energy (Gas and Electricity), Nuclear and Defence Industries.
- Marine and Shipbuilding
- Paper and pulp plant
- Anywhere there is corrosion/high or low temperature / pressure
| Stainless Steel Wire Mesh Size | Stainless Steel Wire Gauge Diameter | ||
|---|---|---|---|
| Sizes in mm | in Inch | BWG No. | Sizes in mm |
| 6.4 | 1/4 | BWG24-22 | 0.56-0.71 |
| 9.5 | 3/8 | BWG23-19 | 0.64-1.07 |
| 12.7 | 1/2 | BWG22-16 | 0.71-1.65 |
| 15.9 | 5/8 | BWG21-16 | 0.81-1.65 |
| 19.1 | 3/4 | BWG21-16 | 0.81-1.65 |
| 25.4x 12.7 | 1 x 1/2 | BWG21-16 | 0.81-1.65 |
| 25.4 | 1 | BWG21-14 | 0.81-2.11 |
| 38.1 | 1 1/2 | BWG19-14 | 1.07-2.11 |
| 25.4 x 50.8 | 1 x 2 | BWG17-14 | 1.47-2.11 |
| 50.8 | 2 | BWG16-12 | 1.65-2.77 |
| 50.8 to 305 | 2 to 12 | At Request | |
Grades of Stainless Steel Wire
| Austenitic | Martensitic |
|---|---|
| AL-6XN Wire, N08367 | 410 Wire, S41000 |
| 201 Wire, S20100 | 416 Wire, S41600 |
| 204Cu Wire, S20430 | 420 Wire, S42000 |
| 301 Wire, S30100 | 420ic Wire, S42000 |
| 301Si Wire, S30116 | 440A Wire, S44002 |
| 302 Wire, S30200 | Custom-450 Wire, S45000 |
| 302HQ Wire, S30203 | Custom-455 Wire, S45500 |
| 303 Wire, S30300 | Ferritic |
| 303Se Wire, S30323 | 430 Wire, S43000 |
| 304 Wire, S30400 | 430Li Wire, 43000 |
| 304H Wire, 30400 | 434 Wire, S43400 |
| 304L Wire, S30403 | 436 Wire, S43600 |
| 305 Wire, S30500 | 444 Wire, S44400 |
| 309 Wire, S30908 | PH Grades |
| 310 Wire, S31000 | 17-7 PH® Wire, S17700 |
| 310S Wire, S31008 | 17-4 PH® Wire, S17400 |
| 316 Wire, S31600 | PH 15-7Mo® Wire, S15700 |
| 316H Wire, S31600 | A286, S66286 |
| 316Ti Wire, S31635 | AM350 Wire, S35000 |
| 317 Wire, S31700 | Duplex Wire Grades |
| 317L Wire, S31703 | Duplex 2304 Wire, S32304 |
| 321 Wire, S32100 | Duplex 2205 Wire, S31803, S32205 |
| 330 Wire, N08330 | Duplex 2507 Wire, S32750-2 |
| 347 Wire, S34700 | |
| Carpenter #20 CB N08020 | |
| Nitronic® 20 Wire, S20400 | |
| Nitronic® 30 Wire, S24100 | |
| Nitronic® 33 Wire, S24000 | |
| Nitronic® 40 Wire, S21904, S21900 | |
| Nitronic® 50 Wire, S20910 | |
| Nitronic® 60 Wire, S21800 |
| 1.4301 (304) | 1.4307 (304L) | 1.4401 (316) | 1.4404 (316L) | 1.4571 (316Ti) | 17-7 – 17-4 |
| 1.4541 (321) | 1.4310 (301) | 1.4845 (310S) | 1.4016 (430) | 1.4512 (409) | 1.4000 (410S) |
| 1.4113 (434) | 1.4509 (441) | 1.4567 (204 Cu) | 1.4006 (410) | 1.4021 (420) | 201 / 202 309 / 310 |
Stainless Steel Wire Other Grades
301, 202S, 202HQ, 304, 304L, 304VM, 305, 309, 310, 316, 316L, 316LVM, 316Ti, 317, 317L, 321, 347, 409, 409CB, 410, 420, 416, 420, 430, 431, 434, 439, 440C, 446, GD316*, GD22* / SUPA408, GD31Mo*/SUPA75R, GD35Mo*, GD39Mo*/SUPA5R, GD50*, 17-7 PH (G31), 13-8Mo, 15-7Mo, A286, 904L, Duplex 2205, Nitronic® 32, Nitronic® 50, Nitronic® 60, Z300
Gauge Range Fine Flat Wire:
• 0.0002 inch to .210 inch (0.0076mm to 5.33mm)
Width Range Fine Flat Wire:
• 0.00025 inch to 1.5 inch (0.00635mm to 38.1mm)
Fine Round Wire:
• .00075″ inch to .400 inch (.019mm to 10.16mm)
Fine Square Wire:
• 0.030 inch to 0.250 inch (.762mm to 6.35mm)
SS Wire Surface Finishes:
• Tin and Lead Coated
• Heat Treated and Tempered
• Bright Polished
Plating of Stainless Steel Wires:
• Gold type I, II, III or MIL-G45204 Solder per MIL-P-81728*
• Silver per QQ-S-365 and ASTM B-298 Military Standard – 1276*
• Copper per MIL-C-14550
• Nickel per QQ-N-290*
• Tin per MIL-T-10727 Solder-ability per MIL-STD-202
• Hot dipped solder in 60Sn/36Pb/2Ag, 100Sn, 96.5Sn/3.5Ag and others upon request
Stainless Steel Wire Size and Tolerances
| Diameter | 0.03 | >0.03-0.10 | >0.10-0.40 | >0.40-0.80 | >0.80-1.20 | >1.20-2.00 |
|---|---|---|---|---|---|---|
| Tolerance | ±0.0025 | ±0.005 | ±0.006 | ±0.013 | ±0.02 | ±0.03 |
Our tempered Stainless Steel wire is available in several different sizes in mm
Nirmaan Steel wire manufacturers in India
• 0.20 (32AWG)
• 0.25 (30AWG)
• 0.28 (29AWG)
• 0.30 (28/29AWG)
• 0.32 (28AWG)
• 0.35 (27AWG)
• 0.40 (26AWG)
The Stainless Steel wire can be provided in three different lengths:
• 10m reel
• 25m reel
• 50m reel
Stainless Steel Wire Price in India (sizes in mm)
ISO & PED approved manufacturers of Stainless Steel Wire, SS 316 Wire Bobbin, 201, SS Bright Wire Exporter, 304 Steel Wire Mesh, SS 316L Spring Wires suppliers in Mumbai, India
| 15 Metre 0.5 Wire on Coil Price: ₹142.62 (₹171.14 inc 20% VAT) 500g 0.5 Wire Price: ₹111.68 (₹134.02 inc 20% VAT) |
10 Metre 0.71 on Coil Price: ₹102.41 (₹122.89 inc 20% VAT) 500g 1.6 Price: ₹111.68 (₹134.02 inc 20% VAT) AVAILABLE ON A COIL, NOT TIGHTLY WOUND ON A REEL |
Contact us for Free quote, Price is subject to change without any prior notice.
